Punched, stamped and drawn parts in constantly high quality, whether high or low volume.

When manufacturing punched, or press-formed parts we can call on a comprehensive machine park. Eccentric presses up to 120 SPM (strokes per minute) at 1600 kN press force. Automated punching presses up to 300 SPM and press force of 800 kN. Hydraulic presses for processing strip steel up to a width of 500 mm and thickness of 5 mm, or 200 mm width and 8 mm thickness.

2500 kN press force at up to 30 SPM and table size of 1600 mm x 1000 mm, installation height 900 mm, stroke 600 mm. Our machine park allows an economical, yet well priced, mass production of punched, stamped and drawn parts, in top quality.

Our expertise in punching and press-forming

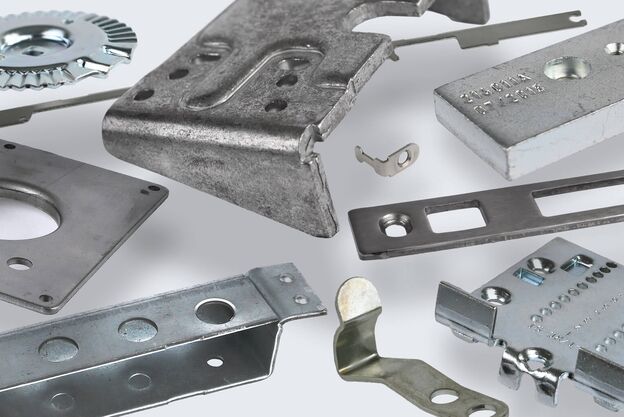

Typical examples for punched and press-formed parts from our production: Brackets, clamps, connecting elements and bespoke punched parts for various applications. For example, medical and pharmaceutical industries, Electronic and automotive industries etc. Utilizing composite tool technology allows punched parts, in sophisticated shapes, to be processed in a single operation.

6 mm strip steel, single-drop, stamped step, drill pattern and contour punched, 2 x 90° angles and trowalized finish.

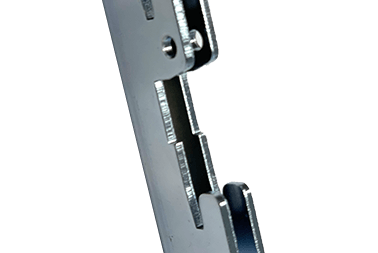

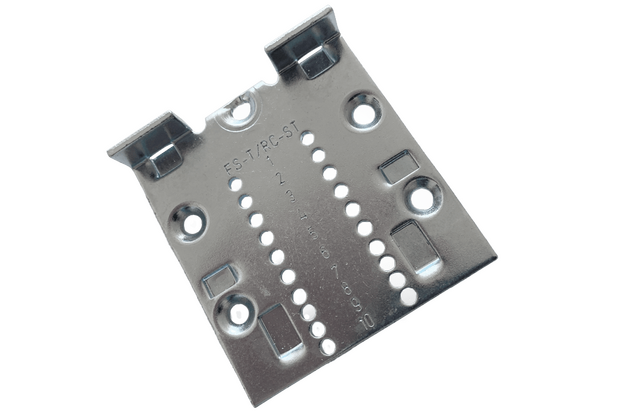

2 mm strip steel, double drop, DIN stamped depressions, customer’s bespoke coining, multiple angles in various directions.

2 mm Strip steel, single drop, burr free contour, 2 x 90° angled

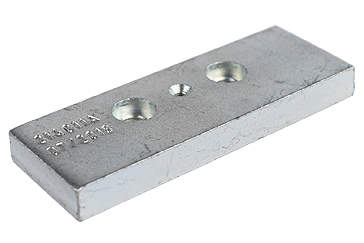

10 mm bar steel, coined part number, hole pattern punched, threaded M4 – M10.

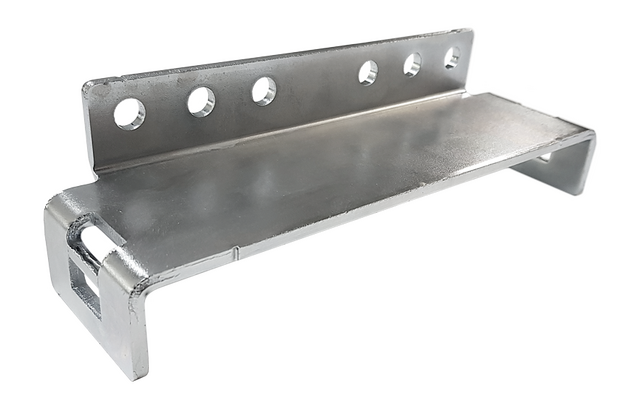

4 mm, cut with a pressing force of 188 t, formed and galvanized

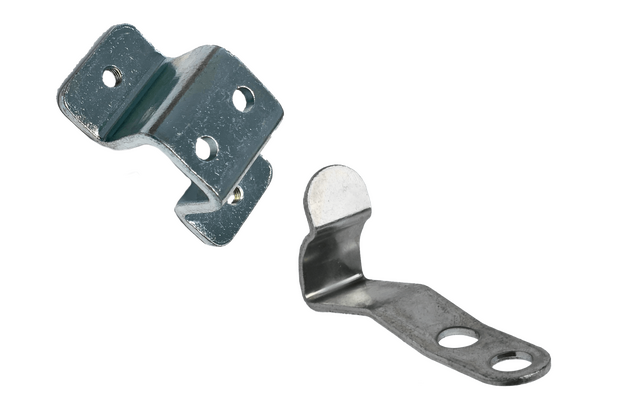

1.5 mm Strip steel, double drop, countersunk to DIN, angled in various directions.

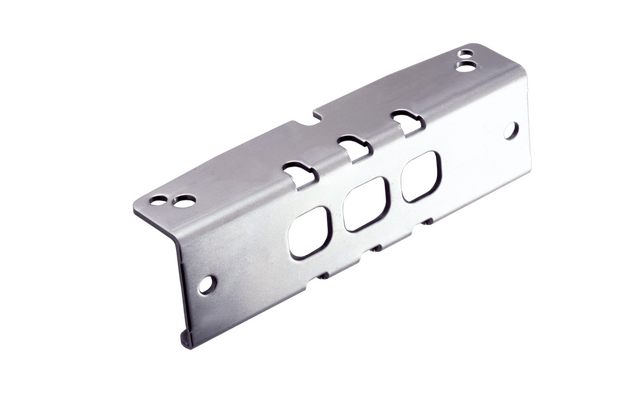

2 mm, burr free contour, symmetrical bend, threaded M4.

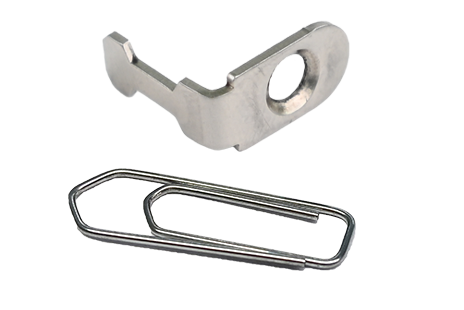

1 mm VA, angled several times

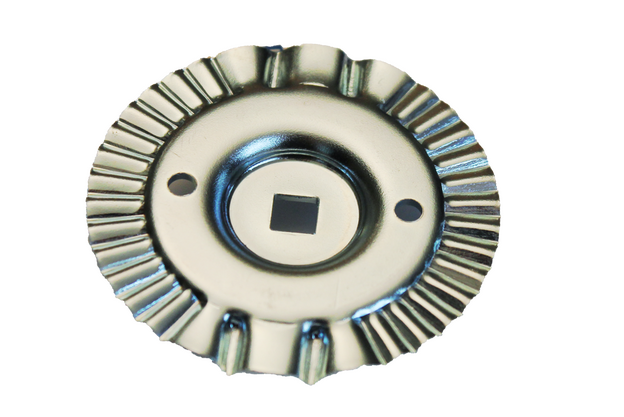

Punched moulded part 2 mm thickness

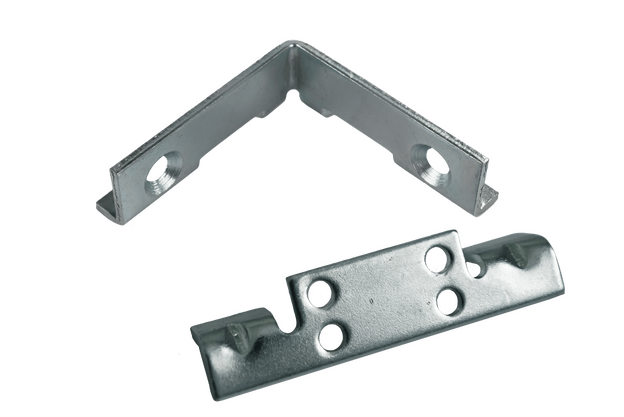

Angle bracket 1 mm VA, free from burrs.

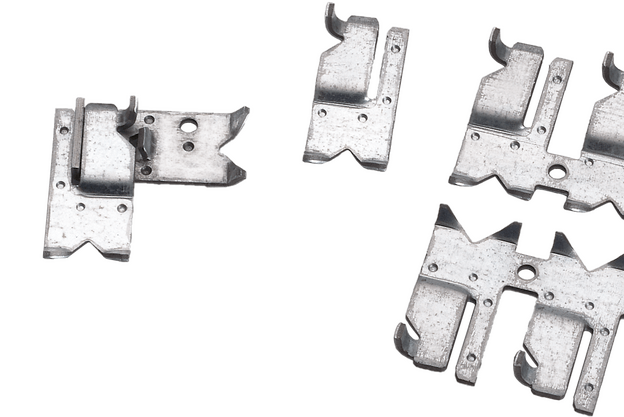

3 mm pre-galvanized production sequence, double drop

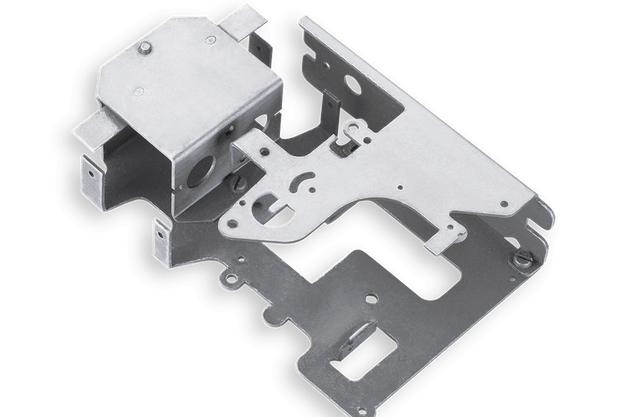

Ready-to-use assemblies

Machine resources

We maintain stamping and hydraulic presses for material thicknesses of 0,1 mm – 10 mm. For your low volume orders we maintain a wide range of single load presses. Stamping presses with speeds up to 300 SPM and 800 kN press force. Eccentric presses with speeds of 120 SPM and 1600 kN press force. Hydraulic presses of 30 SPM and 2500 kN press force.

> List of tooling resources

Tool design

In-house manufacture of tools, dies and complex progressive tooling. Highly skilled toolmaking forms the basis of reliable manufacture of your product.

  • Highly skilled toolmaking
  • Pre-supplied tools accepted
  • Preventive maintenance and storage of your tools

Service and assembly

We manufacture to your specification. If you wish to supply your own tools and dies or supply free issue materials needed for production. We can accommodate you. If you wish, we can also do further mechanical operations and/or the surface treatment.

  • Subsystem assembly
  • Completion and packaging
  • Logistics and shipment
  • Tool & Die design
  • Surface treatment
  • Mechanical processing

NEW at F. GLADTFELD

We manufacture and supply ready-to-fit-metal/plastic insert moulded parts.
